Julia: contour plots

Lets consider a grid as shown in figure below. Each dot on the grid is a point with (x, y) coordinate pair and has an associated value of elevation of the point from ground level (z). The grid is spaced at an interval of 1 unit in x and 0.5 unit in y.

Lets plot contours on this grid. Output from the code block is immediately after the code block.

x = 0:1:7
y = 0:0.5:2
z = 0.5 .+ [102 103 102 104 96 102 100 102;
  104 105 103 102 103 100 99 98;
  99 102 103 104 97 98 99 98;
  100 101 102 103 100 99 100 96;
  101 100 102 104 98 97 95 96]

# Now the plot
using Plots

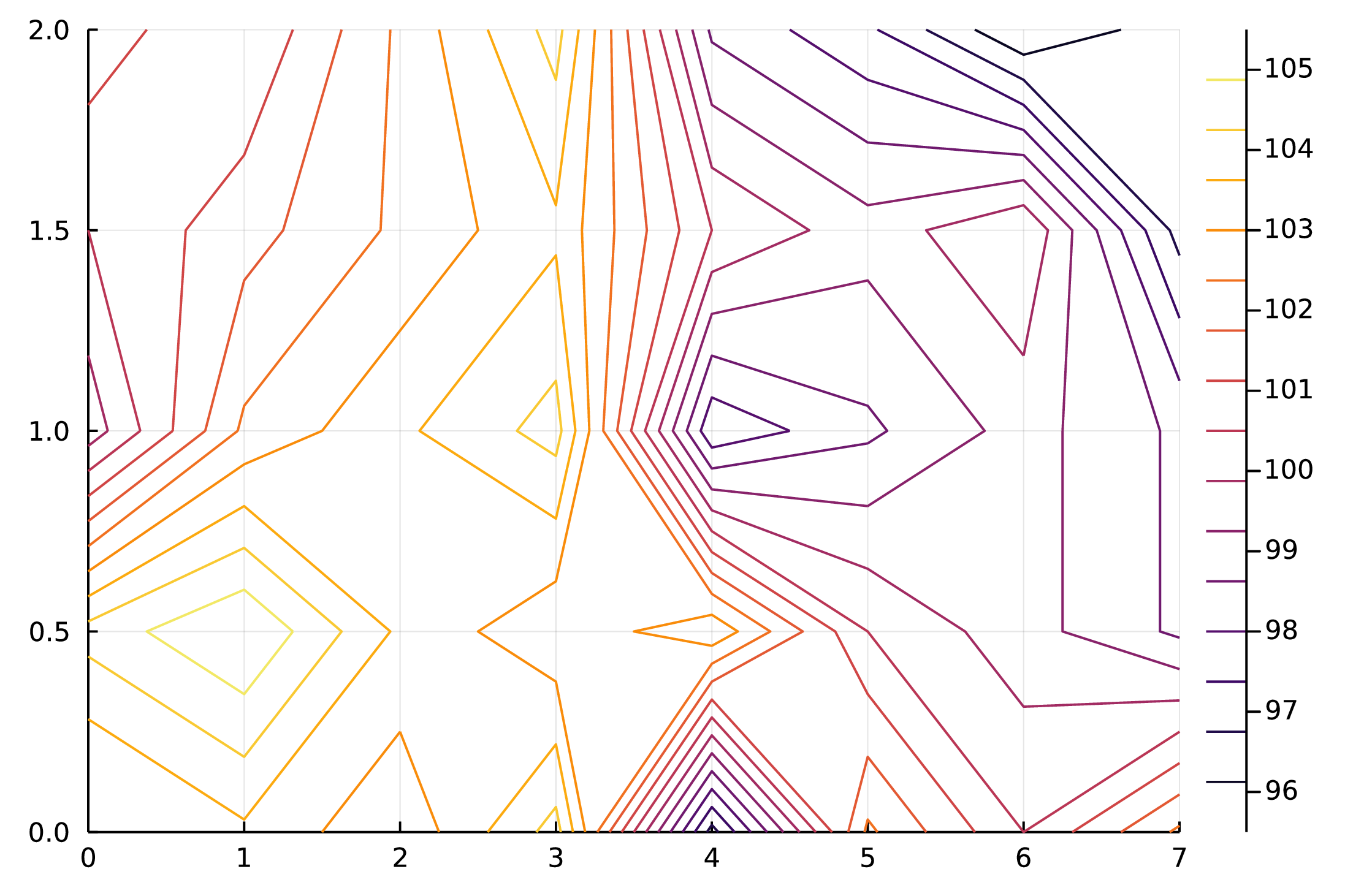

contour(x, y, z)

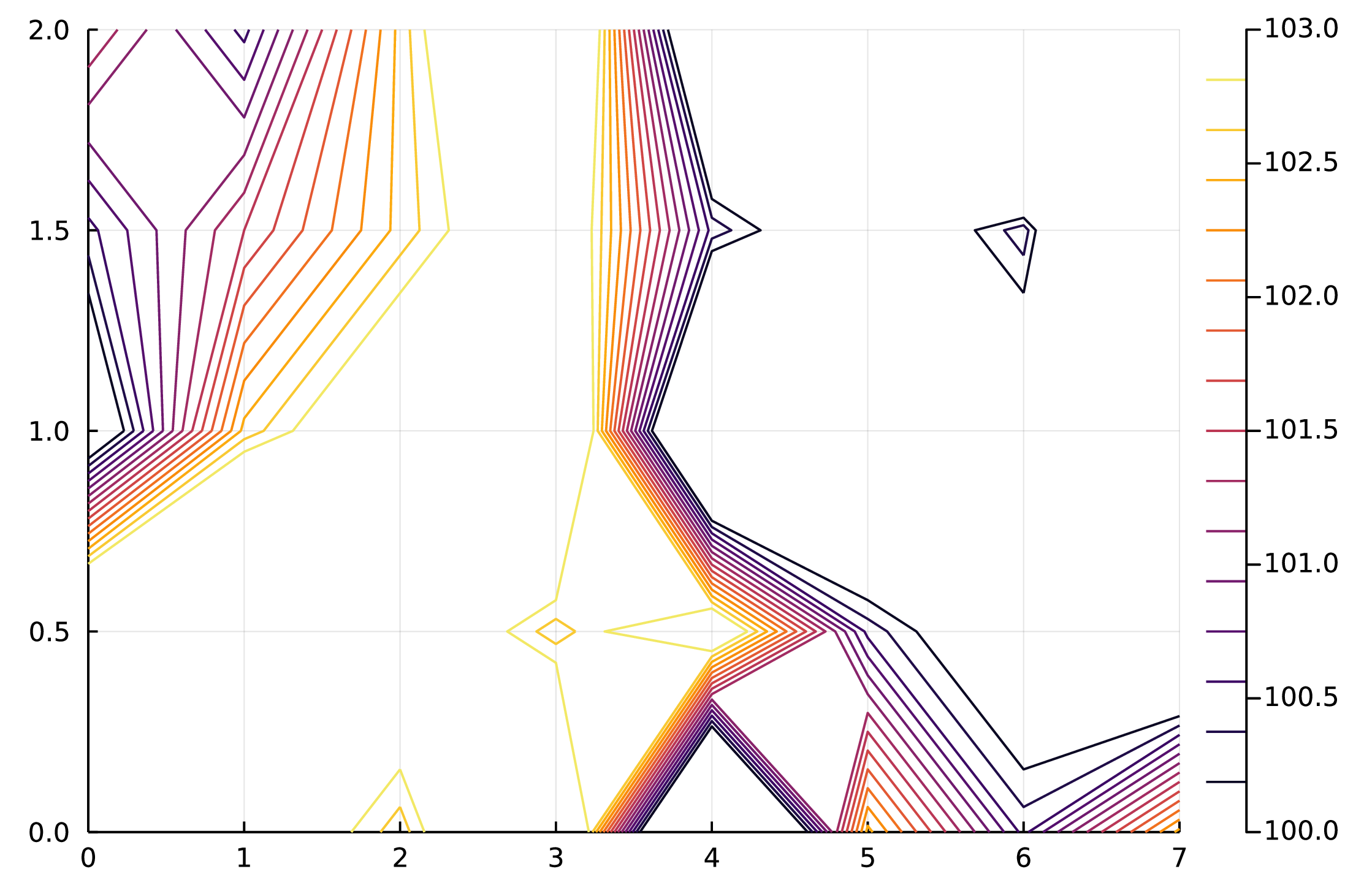

You can specify limits on contours i.e. the lowest contour and highest contour using clims. Only contours within this range will be plotted. The intermediate contour levels will be decided by the library.

contour(x, y, z, clims=(100, 103))

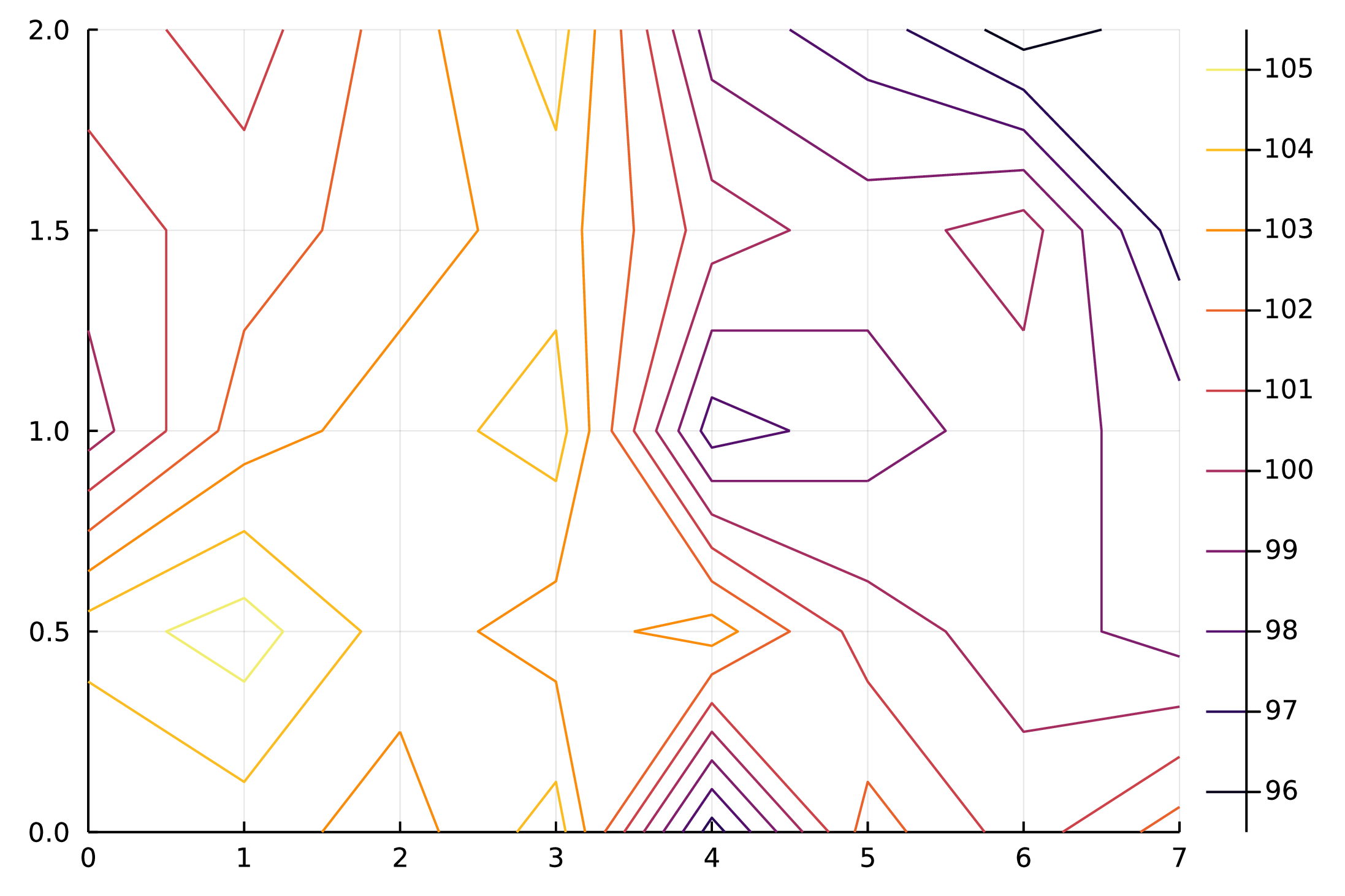

However if you want to have specific levels to be plotted then use levels argument.

contour(x, y, z, levels=collect(95:1:105))

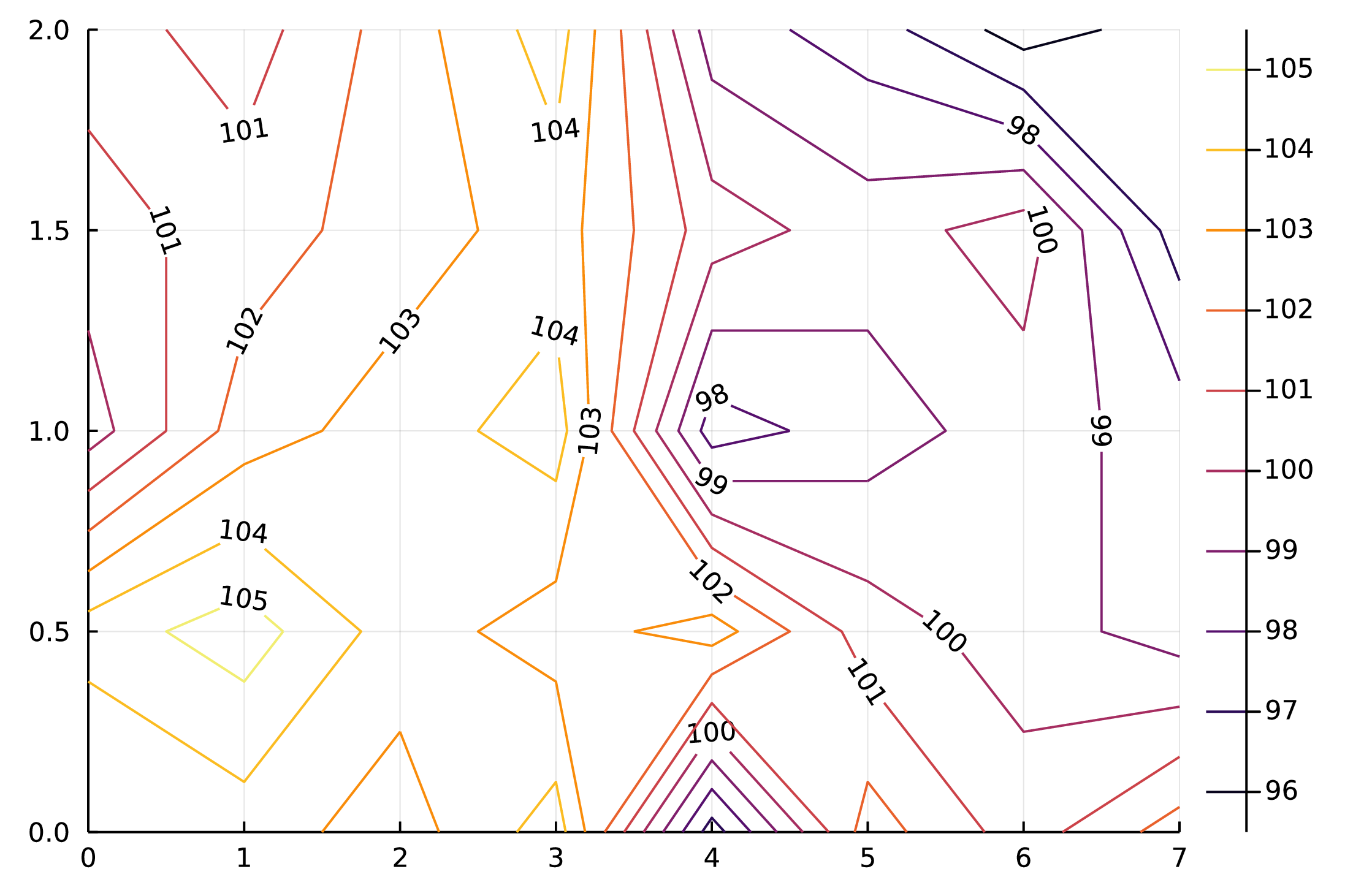

Labels on each contour can be added by simply using contour_labels=true in arguments.

contour(x, y, z, levels=collect(95:1:105), contour_labels=true)

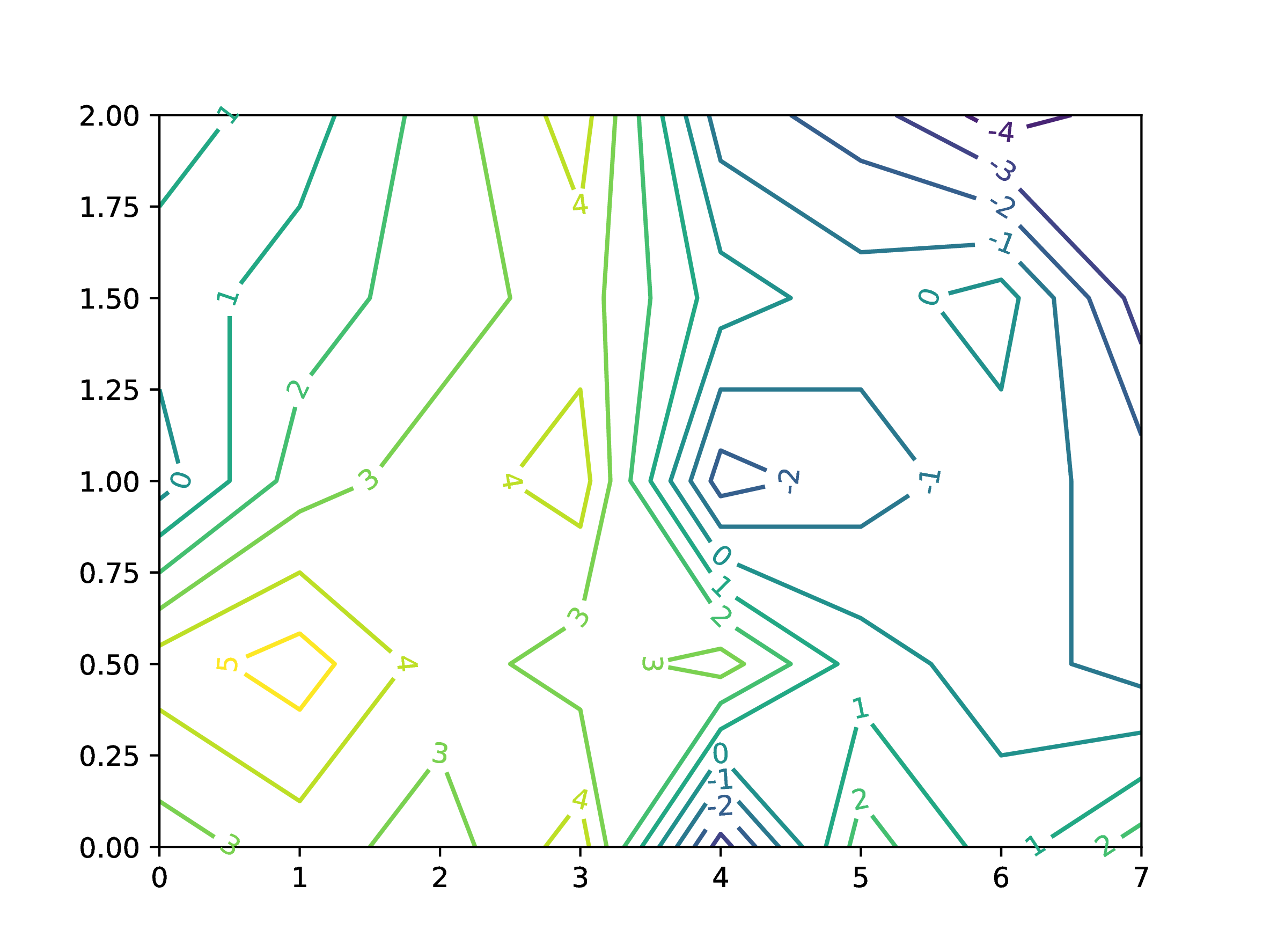

But what if you want some custom label to your contours and not the values? In this particular case let's say you want the elevation with respect to level of $100$, i.e. a $101$ contour should have label $1$ and a $98$ contour should have label $-2$. This is currently not possible with default gr() backend. We need PyPlot library for this. In order to ensure that this library doesn't overwrite the functions from Plots library, we will import it and use its functions with qualifier.

import PyPlot

levels = 95:105
level_labels = ["$(i-100)" for i in levels];
c1 = PyPlot.contour(x, y, z, levels=levels, contour_labels=true)

PyPlot.clabel(c1, fmt=Dict(zip(levels, level_labels)), inline=1);
